T3000Engine System Interface
The heart of engine and aircraft systems.
* Suitable for Light Sports and Experimental Aircraft
Designed for flexibility, the ESI supports a wide range of engine types and sensor inputs, making it ideal for Light Sport and Experimental aircraft.
The T3000 Engine and Systems Interface (ESI) is the heart of engine and aircraft systems data management for integration with your T3000skySuite. It captures real-time information from your engine, fuel, electrical, and sensor systems and delivers it seamlessly to your cockpit displays.
With the ESI installed, pilots gain a complete picture of engine health, performance, and critical systems status – supporting safer, more efficient flight operations.
Whether you’re upgrading or building new, the ESI delivers streamlined integration, reduced wiring complexity, and intelligent system awareness.
KEY FEATURES
- Innovative “Through-Firewall” installation
- Hot-side connections for Engine Sensors including:
- Temperature (CHT x 6, EGT x 6, Oil, +3 configurable connections)
- Fuel Flow, Oil Pressure, MAP, Alternator and Battery Voltage and Current
- Tacho x 2 and CAN x 2 (CANaerospace)
- Cold-side connections for Systems Interface Data including:
- Fuel Qty x 4 and Fuel Flow
- Battery Voltage and Current
- 6 x System Discreet Inputs (Flap position, Gear position etc) or Switched Outputs
THE T3000ENGINE SYSTEM INTERFACE
Technical Specifications:
TSO Equivalence:
TSO-C44c
TSO-C45b
TSO-C47a
TSO-C49b
TSO-C55a
14CFR 23.1192 firewall requirements
DC Power:
8V to 33V <5W
Sensor Power:
5V and 12V (+/-10%)
Over Current Protection:
200mA (+/-30%) each
Exhaust Gast Temperature (EGT):
6 channels (1 per cylinder)
Cylinder Head Temperature (CHT):
6 channels (1 per cylinder)
General Input:
6 discretes / voltages
Ground-switch detection 0–32 V
Outputs:
6 x Open collector outputs
Dimensions:
59mm x 190mm x 106mm
(approx. 2 3/8″ x 7 1/2″ x 4 1/8″)

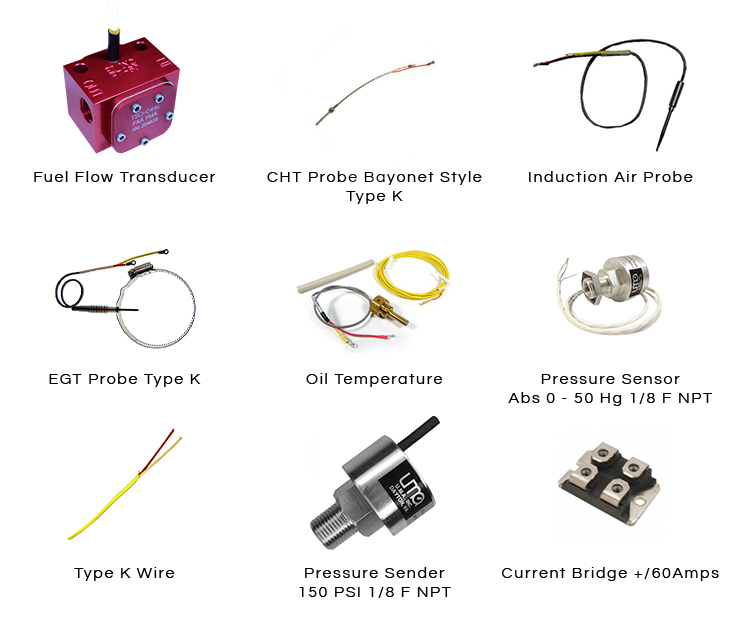

Peripherals:
