T2000UAV-LTransponder

Lightweight Power, Maximum Visibility.

*WITH EITHER BNC OR TNC CONNECTOR

* Suitable for Light Sports and Experimental Aircraft

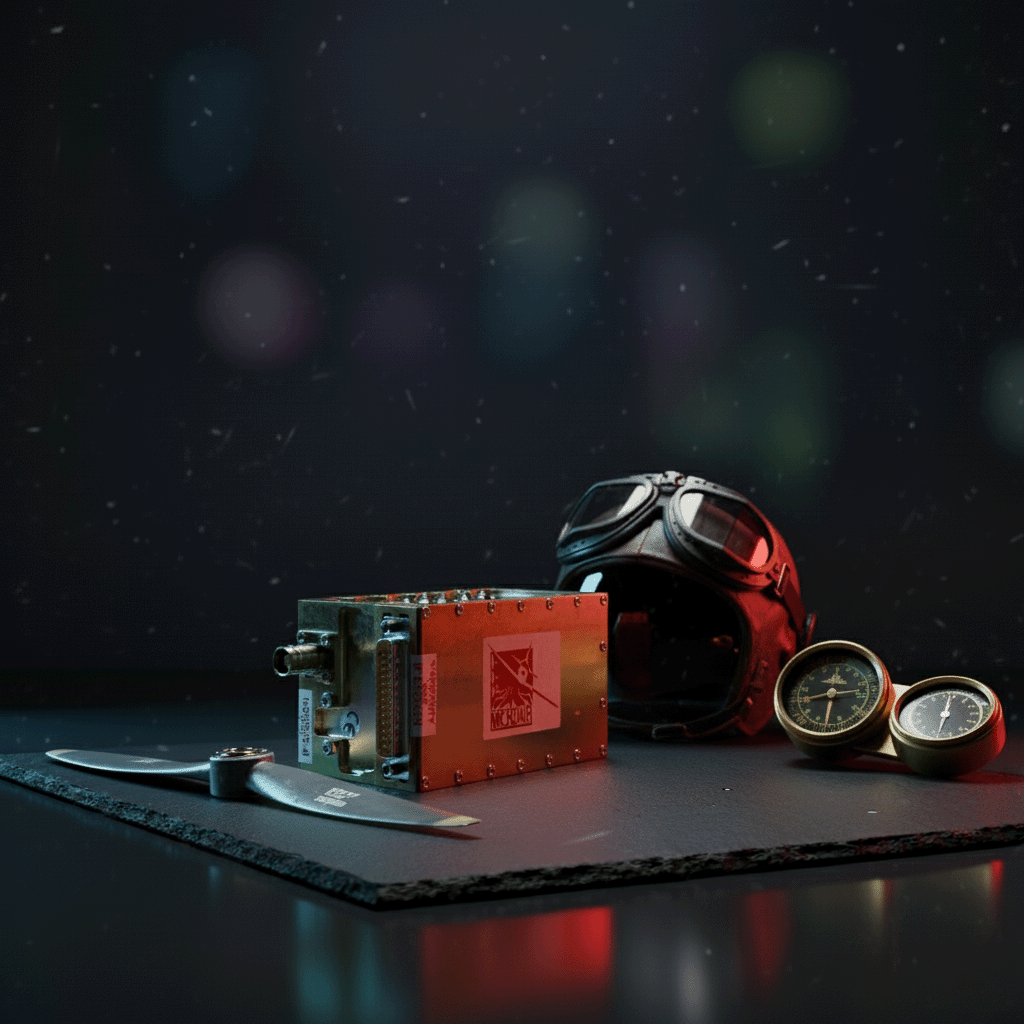

THE T2000UAV-L Transponder

The T2000UAV-L Mode 3A/C is a lightweight version of the T2000 Transponder, built for unmanned aircraft. Weighing just 454g (16oz), it minimizes payload impact while providing full transponder functionality.

This unit makes UAVs visible to ATC controllers and TCAS operators, improving airspace safety. Pilots can enter an ATC-assigned ID code, ensuring the UAV is uniquely identifiable. It replies to all Mode A and Mode C interrogations and accepts Gillham Code barometric altitude data.

Despite its compact design and low power consumption for extended battery use, the T2000UAV-L still delivers a powerful 200W output signal. Installation is straightforward, with rear-mounted BNC or TNC connector options available.

For manuals, wiring diagrams, and pricing, please visit the official Microair Products listing.

TECHNICAL SPECIFICATIONS

RTCA Compliance

Transmitter

Receiver

Input Power

Operational Modes

Temperature

Dimensions

DO-144
DO-160D
DO-178B Level C

1090MHz +/-0.2MHz
200W Pulse Output
80nS Rise Time
120nS Fall Time

+10 to –72dBm Dynamic Range
1030MHz Centre Frequency
+/-5MHz Pass band @ -3dB

10-33Vdc
100-150mA @ 28V
150-200mA @ 14V

Standby Mode
3A (4096 codes) Mode
3A/C Mode

-20° C to +55°C

Width 61mm
Height 61mm
Length 131mm
Weight 454g (16oz)

RTCA Compliance
DO-144
DO-160D
DO-178B Level C

Transmitter
1090MHz +/-0.2MHz
200W Pulse Output
80nS Rise Time
120nS Fall Time

Receiver
+10 to –72dBm
Dynamic Range
1030MHz Centre Frequency
+/-5MHz Pass band @ -3dB

Input Power
10-33Vdc
100-150mA @ 28V
150-200mA @ 14V

Operational Modes
Standby Mode
3A (4096 codes) Mode
3A/C Mode

Temperature
-20° C to +55°C

Dimensions
Width 61mm
Height 61mm
Length 131mm
Weight 454g (16oz)
