T2000SFLTransponder

Smaller. Lighter. Just as Reliable.

* Suitable for Light Sports and Experimental Aircraft

TECHNICAL SPECIFICATIONS

TSO Approval
RTCA Compliance

Transmitter

Receiver (1030MHz)

Input Power

Operational Modes

Dimensions

Weight

Features

C-74C
DO-144
DO-160D
DO-178B Level C

1090MHz +/-0.2MHz
200W Pulse Output
80nS Rise Time
120nS Fall Time

-7 to –71dBm Dynamic Range
1030MHz Centre Frequency
+/-5MHz Pass band

10-33Vdc
100-150mA @ 28V
150-200mA @ 14V

Standby Mode
3A Mode
3A/C Mode
3A/C Mode with Altitude Displayed

Length 169mm (6.65”)
Width 61mm (2.40”)
Height 61mm (2.40”)

600g (21 oz)

Encoder Altitude Display Option
Altitude Alert
Voltage Monitoring and Alert
Switched Encoder Power Output
Suppression In / Out
Remote Standby Switch Option
Remote Ident Switch Option
Audio Beep Alert Ton

TSO Approval
C-74C>
RTCA Compliance
DO-144
DO-160D
DO-178B Level C

Transmitter
1090MHz +/-0.2MHz
200W Pulse Output
80nS Rise Time
120nS Fall Time

Receiver (1030MHz)
-7 to –71dBm Dynamic Range
1030MHz Centre Frequency
+/-5MHz Pass band

Input Power
10-33Vdc
100-150mA @ 28V
150-200mA @ 14V

Operational Modes
Standby
Mode 3A
Mode 3A/C
Mode 3A/C with Altitude Displayed

Dimensions
Length 169mm (6.65”)
Width 61mm (2.40”)
Height 61mm (2.40”)

Weight

600g (21 oz)

Features
Encoder Altitude Display Option
Altitude Alert
Voltage Monitoring and Alert
Switched Encoder Power Output
Suppression In / Out
Remote Standby Switch Option
Remote Ident Switch Option
Audio Beep Alert Ton

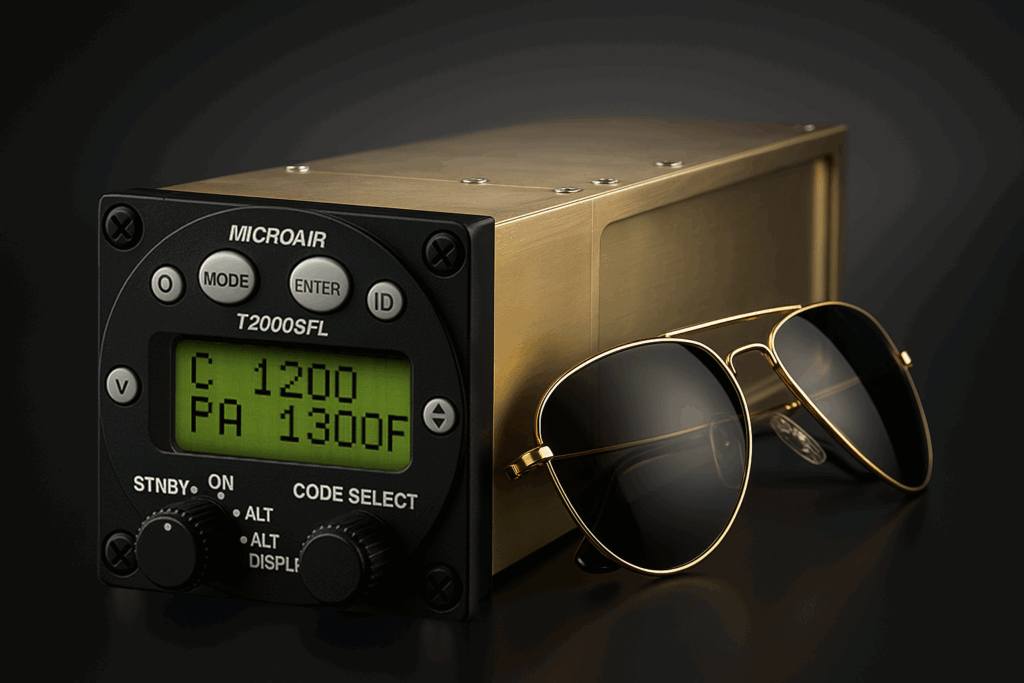

THE T2000SFL Transponder

The T2000SFL is one of the world’s smallest and lightest certified Mode 3A/C transponders, weighing just 600g. With over 5,000 units still in operation globally, it’s a trusted solution for certified aircraft where space, weight and efficiency are key.

Despite its size, the T2000SFL delivers low power consumption and advanced safety features typically found in larger, more costly systems.

Certified to TSO C-74C, it integrates easily with any C88a-compliant altitude encoder, including the Microair EC2002.
